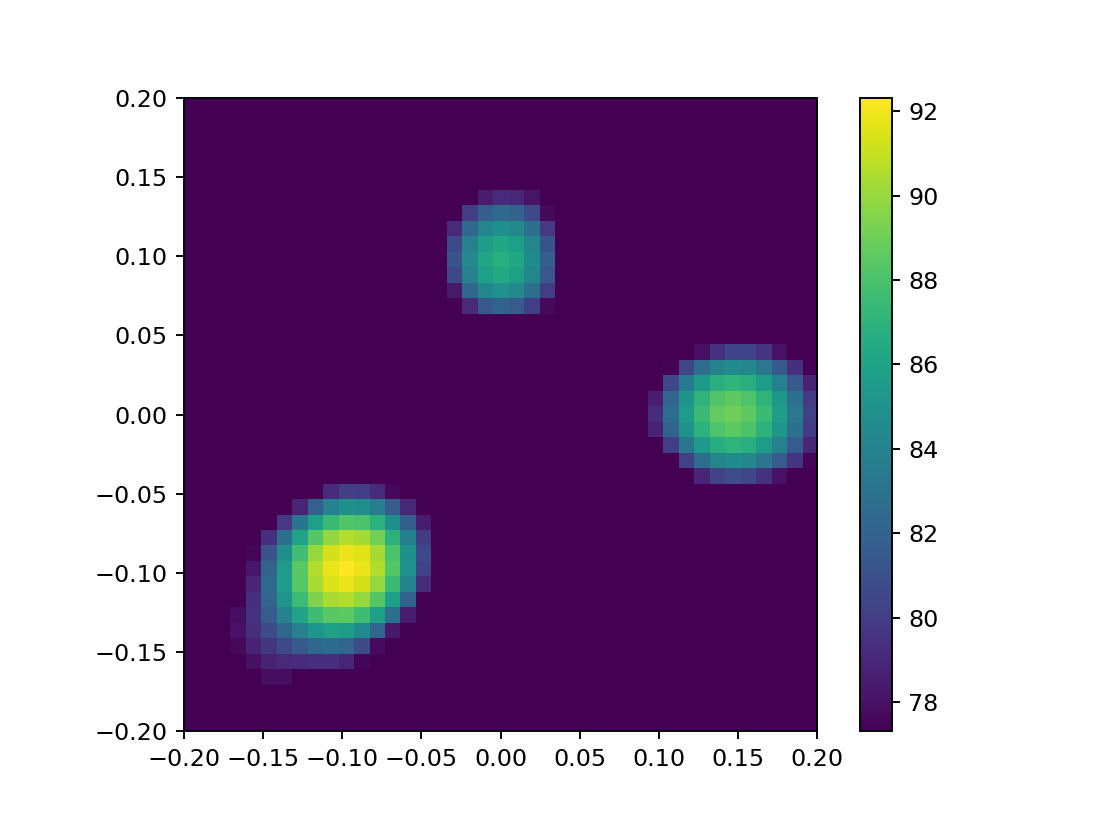

_images/map_three_sources.png

three different point sources

_images/airfoil_leading_edge_noise.png

airfoil leading edge noise

_images/pantograph_noise_3d.png

pantograph noise

Acoular – Acoustic testing and source mapping software

Acoular is a framework for acoustic beamforming that is written in the Python programming language. It is aimed at applications in acoustic testing. Multichannel data recorded by a microphone array can be processed and analyzed in order to generate mappings of sound source distributions. The maps (acoustic photographs) can then be used to locate sources of interest and to characterize them using their spectra.

A few highlights of the framework:

  • covers several beamforming algorithms
  • different advanced deconvolution algorithms
  • both time-domain and frequency-domain operation included
  • 3D mapping possible
  • application for stationary and for moving targets
  • supports both scripting and graphical user interface
  • efficient: intelligent caching, parallel computing with OpenMP
  • easily extendible and well documented

Problems, suggestions and success using Acoular may be reported via the acoular-users discussion forum or to info (at) acoular.org.

Contents:

Installation Description of the different download and installation options to get Acoular running on your system.
Getting Started The basics for using Acoular explained with a simple example.
Examples Example scripts covering different use cases.
Reference Manual All modules, classes and methods featured in Acoular are described in detail here. They can easily be browsed through an inheritance tree and cross links.
Literature In here some of the publications used for this program package are listed. Further reading to fully understand how the algorithms work is recommended.
